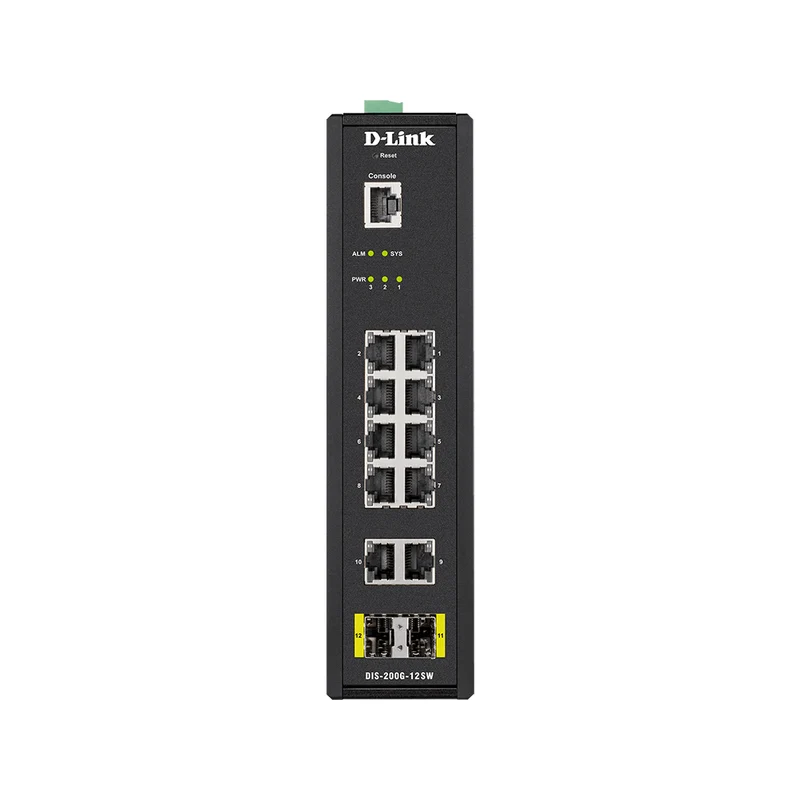

12-Port Gigabit Smart Managed Hardened Industrial Switch - Wide Temp - DIS-200G-12SW

Ideal for industrial and outdoor cabinet surveillance deployments, and capable of withstanding the harshest environments.

• 8 x 10/100/1000BASE-T PoE ports
• 2 x 10/100/1000BASE-T ports
• 2 x SFP ports
• 1 x RJ-45 Console port
• Wide operating temperature: -40 to 75 °C (-40 to 167 °F)
• Robust industry-standard enclosure
• ERPS for quick failover recovery
• High EMC endurance
• Built-in 6 kV surge protection

For more information on our business-class solutions or for deal pricing, please reach out to our commercial team at: [email protected]

Durable and Reliable Design

The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference.

High Redundancy and Reliability

The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.

Surveillance Traffic Optimization

The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network.

Easy Troubleshooting

The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port.

Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DIS-200G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.

Specifications

Switching Capacity	24 Gbps
Max. Packet Forwarding Rate	17.856 Mpps
Power Input	12~48Vdc, redundant dual inputs throught ternimal block/12Vdc through 4-pin power din
CPU Speed	416MHz
DRAM Size	128 MB
Flash Memory Size	32 MB
Packet Buffer Size	4Mbit
Comply with RoHS 6	Yes
Energy Efficiency Ethernet (EEE)	Yes
Power Saving By Link Status	Yes
Power Saving By LED Shut-Off	Yes
Power Saving By System Hibernation	Yes
Power Saving By Port Shut-Off	Yes
MAC Address Table Size	8K
802.3x Flow Control	Yes
Head-of-line (HOL) Blocking Prevention	Yes
802.1AX Link Aggregation	Yes
802.3ad Link Aggregation	Yes
Link Aggregation Group Per Device	6
Max Port Per Link Aggregation Group	8
Port Mirroring	Yes
Jumbo Frame	9600 bytes
Loopback Detection (LBD)	Yes
Class of Service (CoS)	Yes
Console Port	Yes
1000Base-T Interface	10
1000M SFP Interface	2
Auto MDI/MDIX	Yes
Store & Forwarding	Yes
Standby Power Consumption	5.94W
Maximum Heat Dissipation	35.01 BTU/hr
MTBF	219,314 hours
Dimension	210 x 171.2 x 53mm
Weight	1.63kg (3.59lbs)
Operation Temperature	-40 ~ 75℃
Storage Temperature	-40 ~ 85℃
Operation Humidity	0% ~ 95% RH
Storage Humidity	0% ~ 95% RH
Operating Altitude	up to 2000M
Maximum Power Consumption	10.26W
802.1D Spanning Tree (STP)	Yes
802.1w Rapid Spanning Tree (RSTP)	Yes
802.1s Multiple Spanning Tree (MSTP)	Yes
Surveillance VLAN	Yes
802.1Q VLAN	Yes
VLAN Groups	Yes
Port-based VLAN	Yes
Voice VLAN	Yes
Auto Surveillance VLAN	Yes (v2.0)
GVRP	Yes
Asymmetric VLAN	Yes
Number of Queue	4
Strict Priority Queue (SPQ)	Yes
Queue Handling	Yes
Weighted Round Robin (WRR)	Yes
Cable Diagnostics	Yes
Optical Transceiver Digital Diagnostic Monitoring (DDM)	Yes
Simple Network Time Protocol (SNTP)	Yes
Web-based GUI	Yes
Command Line Interface (CLI)	Yes
Telnet Server	Yes
SNMP	Yes
SNMP Trap	Yes
TFTP Client	Yes
System Log	Yes
RMONv1	Yes
LLDP	Yes
D-Link Discover Protocol (DDP)	Yes
DHCP/BootP Client	DHCP Client only
Dual Images	Yes
Dual Configurations	Yes
Ping	Yes
D-Link Network Assistant	Yes
G.8032 ERPS	Yes
MLD Snooping Fast Leave	Yes
IGMP Snooping	Yes
MLD Snooping	Yes
MLD Snooping Groups	Yes
Max IGMP Snooping Groups	256 (shared with MLD snooping)
IGMP Snooping Fast Leave	Yes
Port-based Bandwidth Control	Yes
Port Security	Yes
Broadcast/Multicast/Unicast Storm Control	Yes
Traffic Segmentation	Yes
D-Link Safeguard Engine	Yes
DoS Attack Prevention	Yes
Web-based Access Control (WAC)	Yes
RADIUS	Yes
Surge/Lightning Protection	Yes
Surge/Lightning Protection (AC Power Inet)	2KV
Surge/Lightning Protection (All Ethernet Ports)	6KV
Air Discharge	8KV
Contact Discharge	6KV
