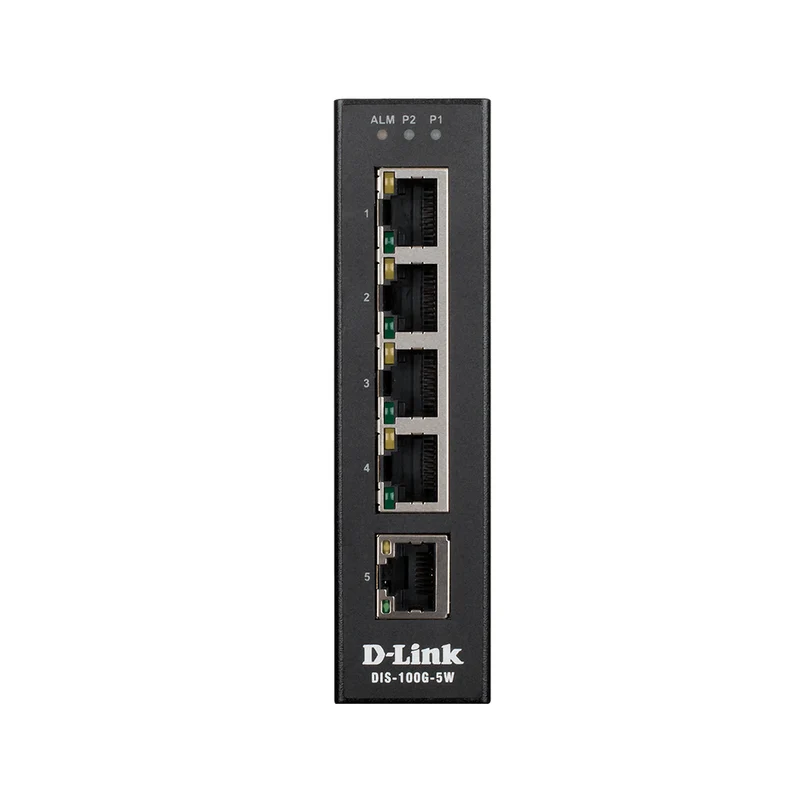

5-Port Gigabit Unmanaged Hardened Industrial Switch - DIS-100G-5W

Plug-and-play Industrial switch ideal for deployment in industrial and outdoor cabinet surveillance settings.

• Five 10/100/1000BASE-T ports

• -40 °C to +75 °C wide operating temperature range
• IP30-rated solid metal housing
• High EMC endurance
• Dual power input for redundant power supplies
• DIN-rail and wall mounting options

• Compliant with EN-50121-4 wayside control and NEMA-TS2 traffic control standards

For more information on our business-class solutions or for deal pricing, please reach out to our commercial team at: [email protected]

Durable, Reliable, and Efficient

The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference.

Fully Certified

Our industrial-grade switches are certified to endure and perform even in the toughest of environments. The D-Link DIS-100G Series industrial switches are compliant with all international requirements for product safety and electromagnetic compatibility to ensure that these switches meet all the necessary standards for safe deployment. Moreover, the DIS-100G Series fully complies with the EN50121-4 wayside control and NEMA-TS2 traffic control standards, which makes these switches an ideal solution for Intelligent Transportation System (ITS) applications.

Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DIS-100G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.

Specifications

1000Base-T Interface	5
Alarm Port	Yes
Auto MDI/MDIX	Yes
Switching Capacity	10Gbps
Max. Packet Forwarding Rate	7.44Mpps
Store & Forwarding	Yes
Power Input	12-58Vdc
FAN	Fanless
Comply with RoHS 6	Yes
Power Saving By Link Status	Yes
Energy Efficiency Ethernet (EEE)	Yes
Power Saving By Cable Length	Yes
MAC Address Table Size	2K
802.3x Flow Control	Yes
Head-of-line (HOL) Blocking Prevention	Yes
Jumbo Frame	9K Bytes
Number of Queue	4
Broadcast/Multicast/Unicast Storm Control	Yes
Dimension	112.2x29.1x89.4mm
Weight	0.32kg
Operation Temperature	-40~75°C
Storage Temperature	-40~85°C
Operation Humidity	5 to 95% RH
Storage Humidity	5 to 95% RH
Operating Altitude	2000m
Maximum Heat Dissipation	10.85 BTU/hr
Maximum Power Consumption	Maximum 3.18W
MTBF	> 25 years
