Vendeur: SANNCE

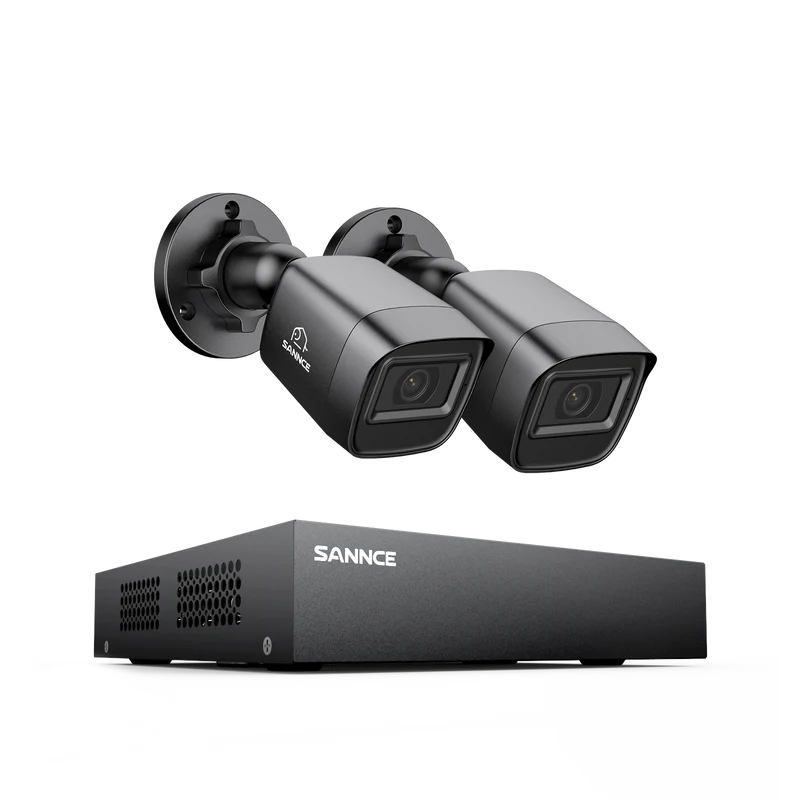

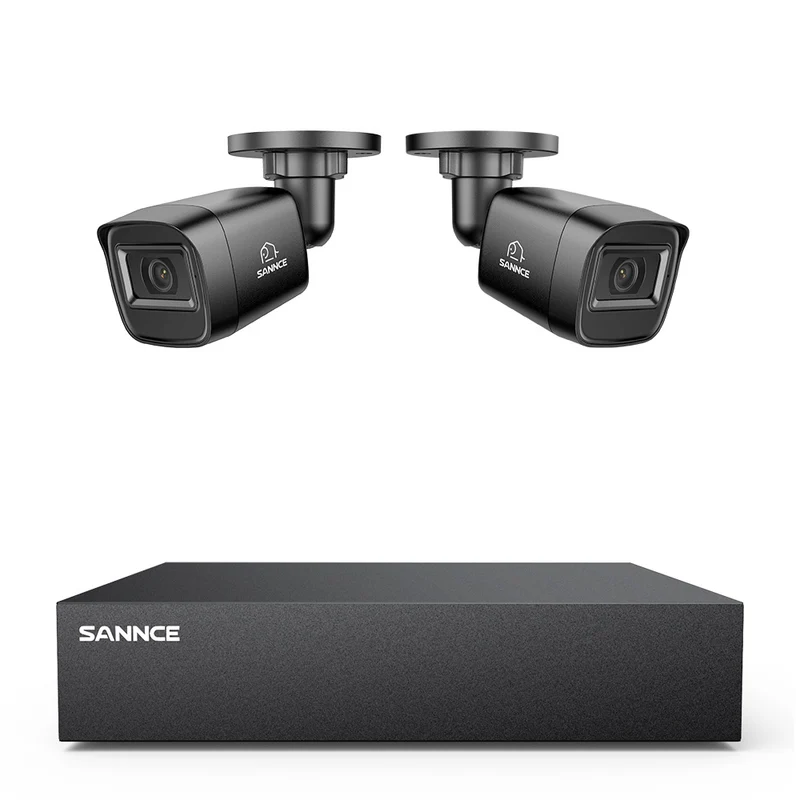

Système DVR filaire de sécurité 5MP à 8 canaux avec 2 caméras Bullet CCTV extérieures 2MP, détection intelligente des personnes, des véhicules et des mouvements
Détails du produit
What's in the Box
- 1X DVR
- 2X Cameras
- 2X 60 ft/18 m BNC Cables
- 2X Power Adapters
- 1X 1-to-2 Power Splitter
- 1X USB Mouse
- 2X Mounting Screw Bags
- 1X User Manual
|
DVR (Model Number: DT81BD) |
||
| Video & Audio | Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Input | 8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps) | |
| Video Output | HDMI up to 1080p/60 Hz | |
| Audio Input/Output | 0/8-ch via coaxial cable | |
| Supported Camera Types | [email protected], 1080p@15 fps, 720p@15 fps, | |
| Analog HD Playback Resolution | 1080P Lite(960×1080)/720p(1280×720)@15fps | |
| IP Camera Input | 2-CH | |
| IPC Recording Resolution | Up to 5MP | |
| Max Playback Channel | 8CH （5MP lite） | |
| Human Detection | Support | |
| Vehicle Detection | Support | |
| ONVIF | Support | |
| Hard Drive | HDD | 1 SATA interface |
| HDD Capacity | Up to 4TB capacity (2.5 or 3.5 inch) | |
| External Interface | Network Interface | RJ45×1(10/100) |
| USB | USB 2.0×2 | |
| General | Working Temperature | 14 °F – 113 °F/-10 °C – 45 °C |
| Dimensions (W X H X D) | 193×195×43mm | |
| Weight | ≤1Kg | |
| Operating Power | DC12V,≤ 18W | |
|
HD Camera (Model Number: C51EE) |
||
| Camera | Image Sensor | 2MP CMOS Image Sensor |
| Video Resolution | 1920 (H) X 1080 (V) | |
| Signal System | PAL/NTSC | |
| Frame Rate | PAL: 1080p@25 fps NTSC: 1080p@30 fps | |
| Lens | 3.6 mm | |
| Min. Illumination | Color: 0.02 Lux @(F1.2,AGC on); 0 Lux with IR on | |
| Angle of View | horizontal FOV: 73°, vertical FOV: 39°, | |
| Number of Infrared LEDs | 1 | |
| Night Vision Distance | Up to 66ft/20 m | |
| DNR | 2D DNR | |
| Wide Dynamic Range | DWDR | |
| IR-Cut Filter | Yes | |
| Video Output | HD BNC X1 | |
| General | Housing | Plastic |
| Color | Black | |
| Operating Power | DC 12 V | |
| Operating Temperature | -40 °F ~ 140 °F/-40 °C ~ 60 °C | |
| Indoor/Outdoor | Indoor/Outdoor | |
| Weatherproof Rating | IP67 | |
| Dimension (L X W X H) | ||
| Weight | ||
